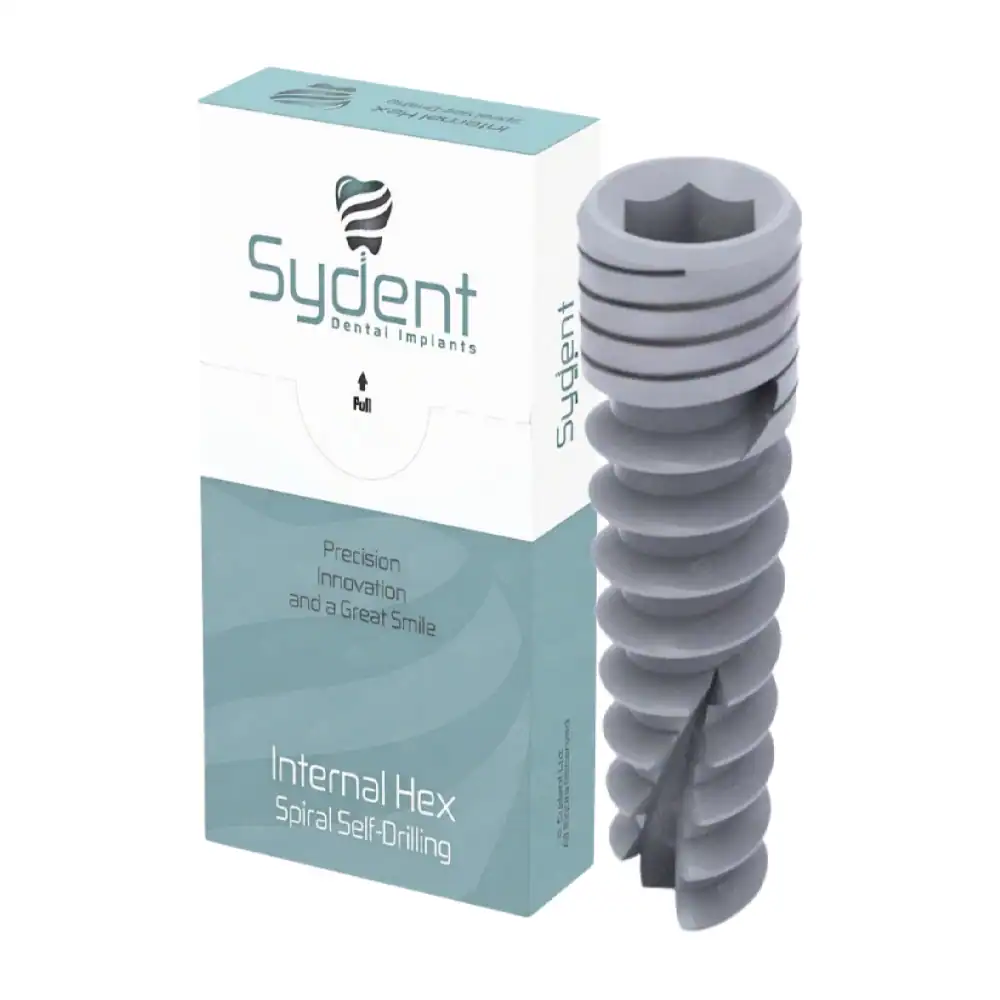

Sydent Pulsar® NP Internal Hex Spiral Implant with Box
Sydent® Pulsar® Spiral Implant and Straight Abutment bundle for clinical restoration
Pulsar® NP Internal Hex Spiral Narrow Implant - High Stability
Sydent™ NP Precision Internal Hex Connection Detail
Pulsar® NP Internal Hex Spiral Implant Angle View
Pulsar® NP Internal Hex Spiral Implant Side View

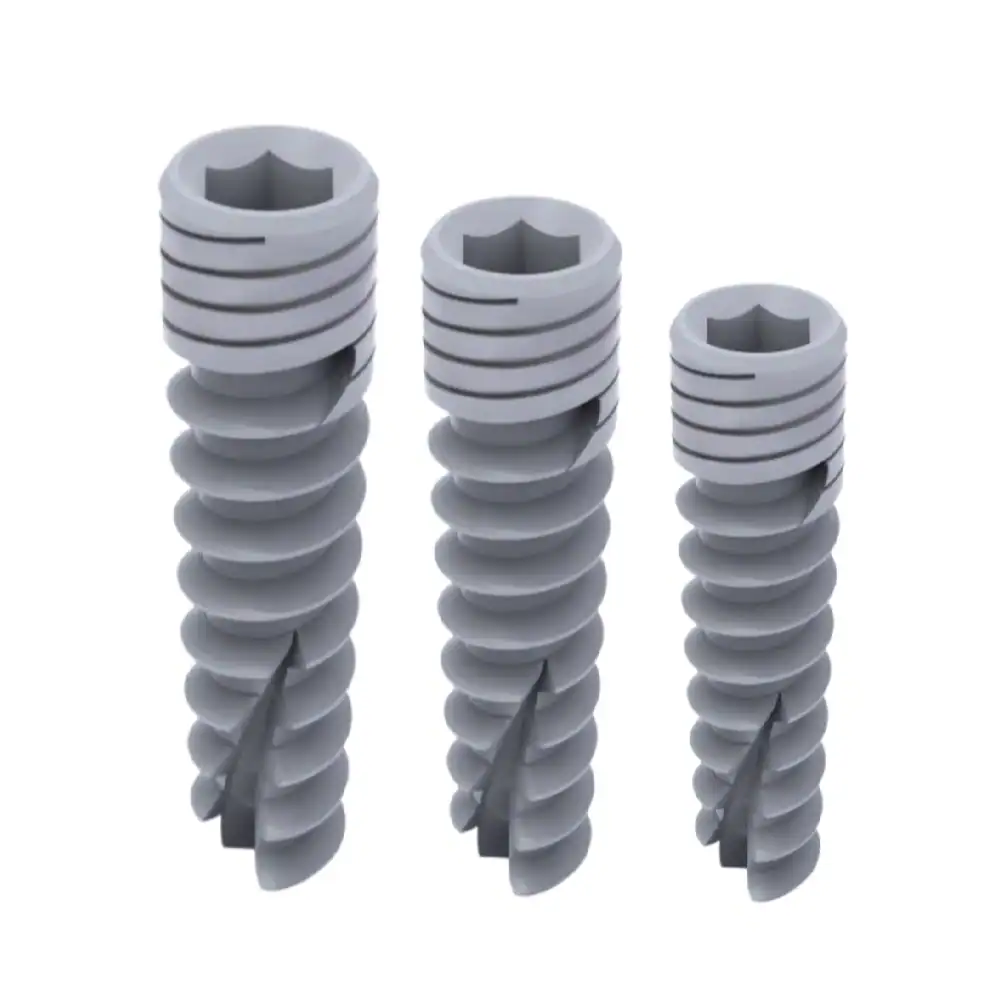

Self-drilling Pulsar® dental implants with internal hex for secure placement.
Pulsar® NP Spiral Touch Self-Drilling Thread Design
Pulsar® NP Spiral Implant in Sterile Packaging
Titanium dental implant abutments for narrow implants with internal hex connection. Precision-engine.
Titanium shoulder abutment for narrow dental implants with internal hex connection.
High-quality titanium shoulder abutment for narrow dental implants with internal hex connection.
Titanium shoulder abutment for narrow dental implants with internal hex connection. Precision-design.
Pulsar® Spiral Self-Drilling Dental Implant + Straight Abutment – Internal Hex (NP) - Image 14
Rotational plastic castable abutment with internal hex for dental implant restorations.
Abutment for dental implants with internal hex connection, designed for precise fit and easy placeme.
Rotational plastic castable abutment with internal hex for dental implants.

Pulsar® Spiral Self-Drilling Dental Implant + Straight Abutment – Internal Hex (NP)

50.00 $

Compatibility: MIS®, AB Dental®, Alpha Bio®, and Adin®

FREE Straight Abutment with every implant!
Standard sizes included. For specific sizes, add a note or email us.

10 Units - 47$ Each 47.00 $
20 Units – 45$ Each 45.00 $
50 Units – 43$ Each 43.00 $
100 Units - 40$ Each 40.00 $
Loading options…
Subtotal: —
You save: —
Total (0): —

Description

Pulsar® | Spiral Self-Drilling Dental Implant + Straight Abutment (NP)

The core solution for your restorative needs. This complete setup features our flagship Pulsar® spiral implant alongside a high-precision straight titanium abutment. Engineered for exceptional primary stability and bone preservation, its advanced geometry excels in all bone types through a balanced, dynamic self-drilling mechanism.

  • Internal Hex System
  •  Hex Size: 2.1 mm
  • Narrow Platform: NP
  •  Available Diameters: Ø2.9 / Ø3.3 mm
  •  Available Lengths: 6  / 8  / 10 / 11.5 / 13 / 16 mm
  • Abutment Lengths & Collar Heights: L8.5 – H1 / L9.5 – H2 / L10.5 – H3 / L11.5 – H4 mm
  •  Material: Titanium Ti-6AL-4V-ELI
  • Surface Treatment: S.L.A – Sand-Blasted / Large Grit / Acid-Etched
  • Sterilization Process: Gamma Irradiation
  • Made In Israel
  • Package Includes: Pulsar® NP Spiral Implant with a cover screw, Packed in a double sterile tube + Straight Abutment

Self-drilling Pulsar dental implant with internal hex connection for secure placement.

Clinical Advantages:

  • Ideal for Narrow Spaces: Engineered specifically for lower incisors and limited spaces where a standard platform cannot be used.

  • High Initial Torque: Achieves exceptional stability even in thin bone structures (Type IV bone).

  • Soft Tissue Preservation: The integrated platform switching ensures long-term biological width and aesthetic results.

  • S.L.A Surface Treatment: Advanced surface for rapid and predictable osseointegration.

  • Sterilization: Gamma Irradiation for maximum safety.

Sydent Pulsar Drilling Protocol 11.5mm Illustration



Additional information

Classes

Self Drilling, Spiral
Model

Pulsar®
Connection

Internal Hex
Hex Size

2.1mm
Platform Type

NP
Material

Titanium Grade 5
Implant Diameter

,

Diameter

Ø2.9, Ø3.3
Length

10mm, 11.5mm, 13mm, 16mm, 6mm, 8mm
Surface Treatment

S.L.A – Sand Blasted, Large Grit, Acid – Etched
Sterilization Method

Gamma Irradiation
Made In

Israel
Compatible Brands

AB Dental®, Adin®, Alpha Bio®, Implanet®, MIS®
Package Includes

Titanium Abutment, Screw, Spiral Dental Implant
