Description

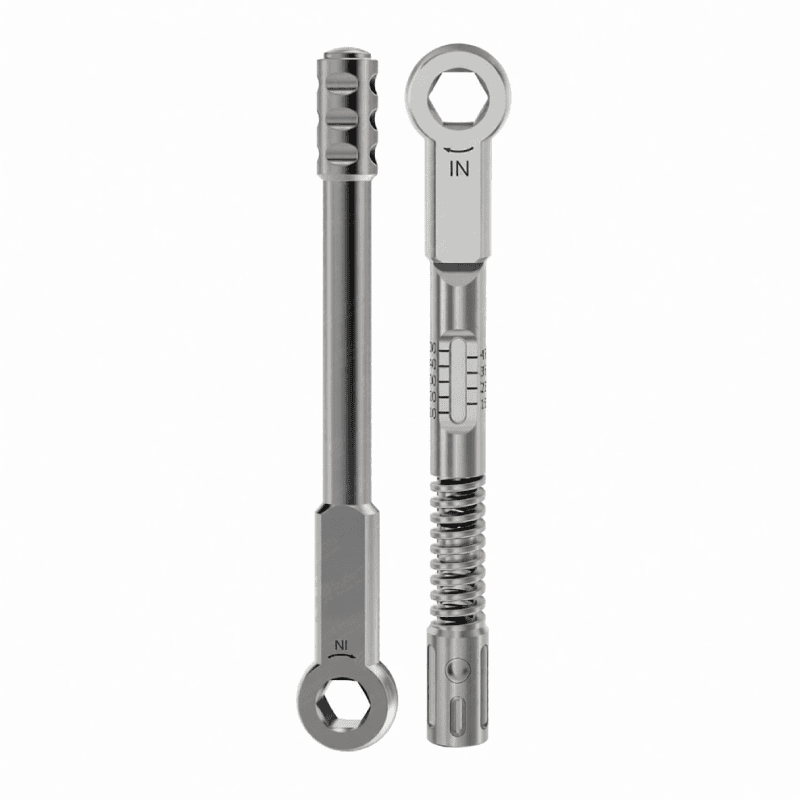

• Premium quality Ratchet Wrenches – 6.35mm Hex
• Torque Ratchet Range: 10-45 Ncm w/ adjustable torque mechanism
• Material: Medical Grade Stainless Steel
• Made In Germany
• Package Includes: Premium Torque Ratchet Wrench + Premium Standard Torque Ratchet Wrench

Maintenance

• The wrenches are not sterilized prior to shipping.
• They must be cleaned, disinfected, and sterilized before use.
• When cleaning, do not use abrasive detergents and do not apply excessive pressure.
• To avoid damage do not clean with a wire brush or metal pads.
• Use only cleaning and disinfectant solutions with a ph between 5 and 10.
• Please follow the cleaning/disinfectant manufacturer’s instructions (e.g. intended use, dosage, time, renewal period).
• Frequent but careful cleaning has little effect on the life of the ratchet.
• Product life is determined by wear.
• Recalibrate the wrench once a year. The wrench must be cleaned and sterilized after service.

Intended Use

This wrench was designed for use in dental applications. It should only be used by qualified personnel. It is used to screw in dental implants and to extract them at pre-adjusted torque levels.

Recommended Sterilization Method

• Loosen the ratchet completely prior to sterilization
• Method Fractionated pre-vacuum process (according to ISO 17665)
• Temperature Heat up to 134⁰C (137⁰C Maximum)
• Pressure 3 pre-vacuum phases with at least 60 millibar pressure
• Holding Time at least 5 minutes
• Drying Time at least 10 minutes
• After sterilization checks the packaging of the sterilized instruments for damage. Check the sterilization indicators.

Instructions

• Setting the Torque: The desired amount of torque can be set with the adjustment nut (1).
• A scale (2)in front of the wrench indicates the amount of torque that can be applied in that setting. 5 Ncm increments are clearly
• marked on the sides of the scale (from 10 to 45 Ncm).
• Blocking the Torque: Setting the torque to its maximum effectively disables the torque feature.
• Do not screw too tightly.
• Storage: Store in a relaxed position, not exceeding 20 Ncm.
• Store the sterilized wrenches in a dry, dust-free, corrosive vapor-free area at a moderate temperature.
