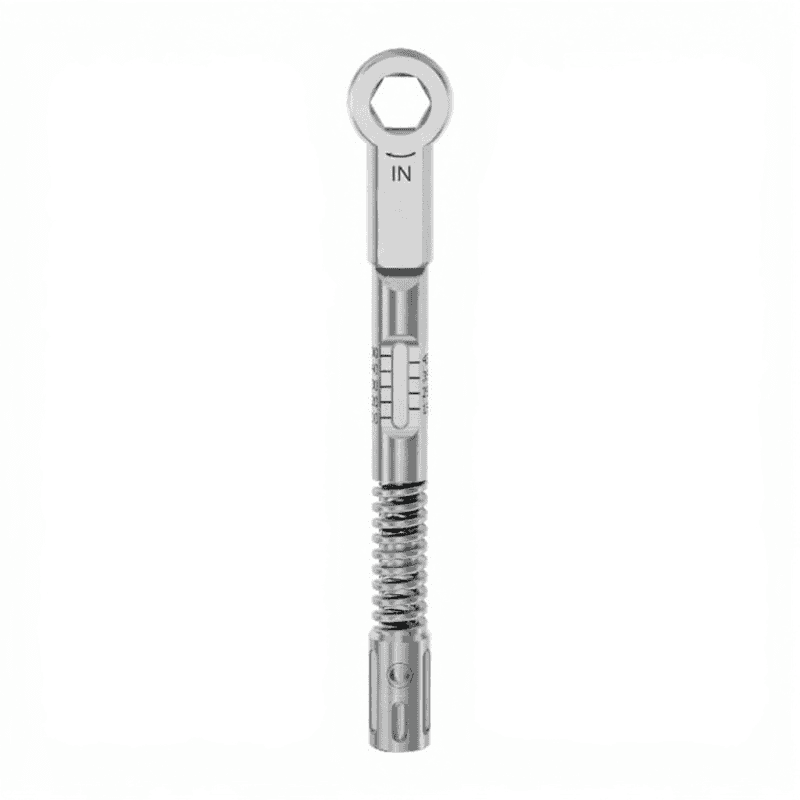

Description

• Hex Size: 6.35mm Universal Hex
• Premium quality adjustable torque mechanism
• Torque Range: 10-45 Ncm
• Material: Medical Grade Stainless Steel
• Made In Germany
• Package Includes: Torque Ratchet Wrench

Intended Use

This wrench was designed for use in dental applications. It should only be used by qualified personnel. It is used to screw in dental implants and to extract them at pre-adjusted torque levels.

Instructions

• Setting the Torque: The desired amount of torque can be set with the adjustment nut (1).
• A scale (2)in front of the wrench indicates the amount of torque that can be applied in that setting. 5 Ncm increments are clearly marked on the sides of the scale (from 10 to 45 Ncm).
• Blocking the Torque: Setting the torque to its maximum effectively disables the torque feature.
• Do not screw too tightly.
• Storage: Store in a relaxed position, not exceeding 20 Ncm.
